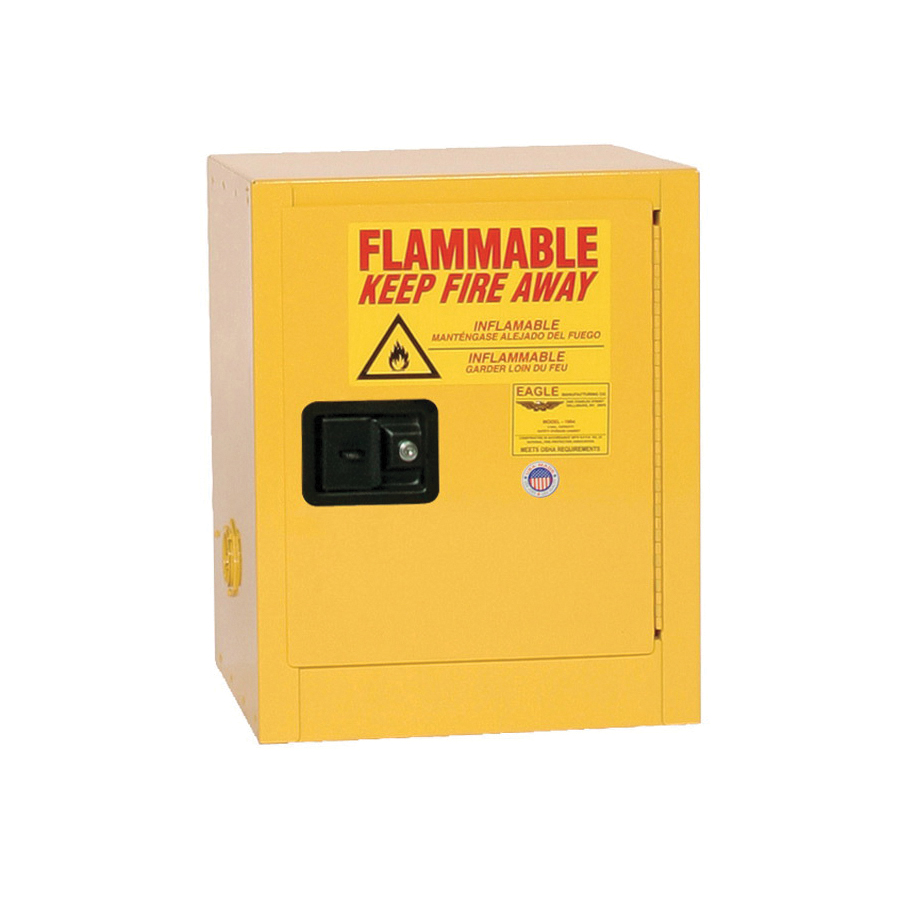

Eagle Manufacturing 1903X Bench Top Flammable Safety Cabinet, 4 gal Capacity, Lever Handle, 22-1/2 in H x 17-1/2 in W x 18 in D, Self-Close Door, 1 Doors, 1 Shelves, Steel, Yellow
- Manufacturers: Justrite Manufacturing
- Brand Name: Eagle Manufacturing
- ITEM CODE: EAGMA-1903
- Mfr Part: 1903X
- UPC: 048441690077
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
DESCRIPTION
4 gal, self-closing, bench top flammable liquid safety cabinet is constructed of 18 ga steel. The sides, top, bottom and doors are double-walled with a 1-1/2 in air space between walls. Includes two vents, each have 2 in threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system and 2 in raised, leak-proof door sill. Each shelf is adjustable on 3 in centers, supported by four brackets, with a 350 lb safe allowable load. Cabinets meet NFPA Code 30 and OSHA requirements.
Eagle Manufacturing, 1903X, Flammable Safety Cabinet, Bench Top, 4 gal Capacity, 22-1/2 in Height, 17-1/2 in Width, 18 in Depth, Self-Close Door, 1 Doors, 1 Shelves, Steel, High Gloss Powder Coated, Yellow, Lever Handle
| Finish | : | High Gloss Powder Coated |
| Type | : | Bench Top |
| Capacity | : | 4 gal |
| Handle Type | : | Lever |
| Height | : | 22-1/2 in |
| Width | : | 17-1/2 in |
| Depth | : | 18 in |
| Door Type | : | Self-Close |
| Number of Doors | : | 1 |
| Number of Shelves | : | 1 |
| Material | : | Steel |
| Color | : | Yellow |
- Ground connection
- Four adjustable galvanized leveling legs
- Trilingual warning labels
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lb (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Flush mounted door handle with key lock
- 3-point stainless steel bullet latching system provides failsafe, positive door closure with increased heat and corrosion resistance
- 3 in (7.6 cm) centers for shelf brackets
- Includes two vents, each have 2 in threaded fittings and fire baffle and cap
- Self-latching doors
- 135 deg opening self-closing door
- Concealed self-close mechanism provides obstruction-free access to top shelf space
- Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom
- Standard flammable liquid safety cabinets come in yellow high gloss powder finish with red warning, plus grounding attachment, 3-point latch system and 2 in raised, leakproof door sill
- Each shelf is adjustable, supported by 4 brackets and can support 350 lb
- 19-1/2 in H x 14-1/2 in W x 15 in D inside dimensions
- 1902 shelf model number
- 14-3/4 in D shelf
- Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
- Continuous piano hinges
- NFPA Code 30
- OSHA Compliant
- International Fire Code(IFC)
- NFPA 1
- PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
