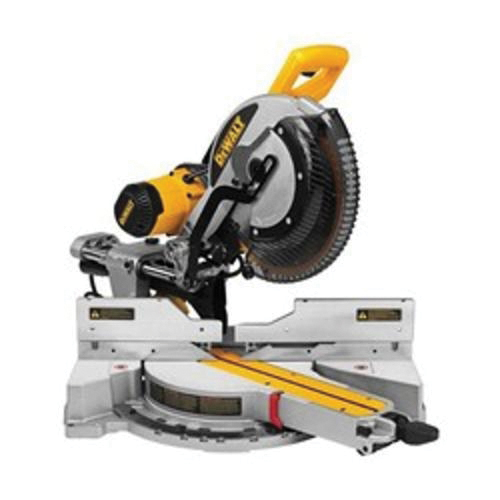

DeWALT® DWS780 Double Bevel Sliding Compound Miter Saw, 12 in Dia Blade, 5/8 in, 1 in Arbor/Shank, 4-1/2 in H x 9-1/2 in W at 45 deg, 4-1/2 in H x 13-3/4 in W at 90 deg Cutting, 50 to 60 deg Miter, 49 deg Bevel
- Manufacturers: Stanley Black & Decker
- Brand Name: DeWalt®
- ITEM CODE: DEWAL-DWS780
- Mfr Part: DWS780
- UPC: 885911906913
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
DESCRIPTION
The 12-inch Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2-inch of nested crown and 6-3/4-inch of base molding vertically. Exclusive Back Fence Design cuts up to 2x14 dimensional lumber at 90; increased miter capacity of 60 and 50 (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
DeWALT® Compound Miter Saw, Double Bevel Sliding, Bare Tool, 12 in Dia Blade, 5/8 in, 1 in Arbor/Shank, 3800 rpm Speed, Cutting Capacity: 4-1/2 in H x 9-1/2 in W at 45 deg, 4-1/2 in H x 13-3/4 in W at 90 deg, 45/90 deg Cutting Angle, Miter Capacity: 50 to 60 deg, Bevel Capacity: 49 deg, Bevel Stops: 9 deg, 120 VAC, 15 A, Aluminum Housing Material, Cam Action Miter Lock Handle, 6 ft Cord, 19-3/4 in H x 30-1/2 in W x 23-1/2 in D Dimensions
| Amperage Rating | : | 15 A |
| Bevel Stops | : | 9 deg |
| Cord Type | : | 6 ft |
| Cutting Angle | : | 45/90 deg |
| Dimensions | : | 19-3/4 in H x 30-1/2 in W x 23-1/2 in D |
| Handle Type | : | Cam Action Miter Lock |
| Housing Material | : | Aluminum |
| Speed | : | 3800 rpm |
| Type | : | Double Bevel Sliding |
| Voltage Rating | : | 120 VAC |
| Tool/Kit | : | Bare Tool |
| Blade Size | : | 12 in Dia |
| Arbor/Shank Size | : | 5/8 in, 1 in |
| Cutting Capacity | : | 4-1/2 in H x 9-1/2 in W at 45 deg, 4-1/2 in H x 13-3/4 in W at 90 deg |
| Miter Capacity | : | 50 to 60 deg |
| Bevel Capacity | : | 49 deg |
- Integrated XPS cross-cut positioning system provides adjustment-free cut line indication for better accuracy and visibility
- Powerful motor delivers extended power and durability
- Super efficient dust collection system captures over 75% of dust generated
- Tall sliding fences support crown molding upto 7-1/2 in nested and base molding upto 6-3/4 in vertically against the fence while easily sliding out of the way for bevel cuts
- Exclusive back fence design cuts up to 2 x 16 dimensional lumber at 90 deg and 2 x 12 at 45 deg
- Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
- Miters 60 deg to the right and 50 deg to the left providing increased capacity
- Oversized bevel scale makes bevel angle adjustments accurate and easy
- Compact, lightweight design allows for easy transport and storage
- Cam lock Miter handle with detent override deliver quick and accurate Miter angles
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
- Innovative gearbox and belt-drive design increases vertical cutting capacity
- Precise miter system and machined base fence support optimize durability and cutting accuracy
- 1-UL Listed
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DeWalt_DWS780_User_Manual.pdf
