DeWalt® DWM120
  • https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DeWALT_DWM120_Technical_Drawing.pdf
  • https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DeWALT_DWM120_Manual.pdf

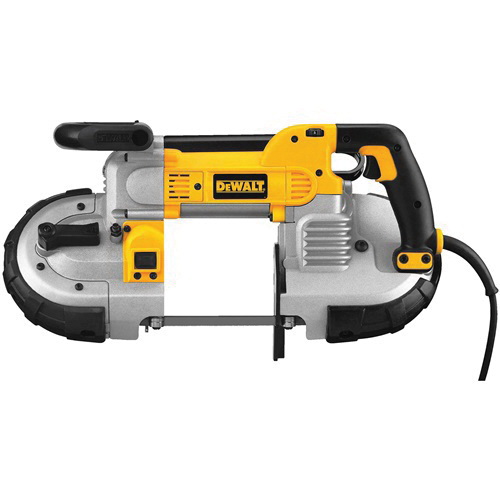

DeWALT® DWM120 Deep Cut Heavy Duty Portable Band Saw, 5 in Round, 5 x 4-3/4 in Rectangular Cutting, 44.875 x 0.5 x 0.02 in Blade, 120 VAC, 100 to 350 fpm Speed

  • ITEM CODE: DEWAL-DWM120
  • UPC: 885911048187

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

DeWalt® DWM120

DESCRIPTION

DeWALT® heavy duty, deep cut, portable band saw is powered by 10 a motor, designed to excel in various applications. Saw has a 5 in by 4-3/4 in rectangular stock deep cut capacity and a 5 in round stock cut capacity. Features include led light that illuminates the outline, blade tracking adjustment, serviceable steel shroud and guards with rubber bumpers. Ergonomic soft grip back handle provides comfort during use.


DeWALT® Portable Band Saw, Deep Cut Heavy Duty, Cutting Capacity: 5 in Round, 5 x 4-3/4 in Rectangular, 44.875 x 0.5 x 0.02 in Blade, 100 to 350 fpm Speed, 120 VAC, 10 A, Rubber/Steel Housing Material, Ergonomic Soft Comfort Grip Handle, Corded Cord, Variable Speed Control, 21 in L Dimensions

SPECIFICATIONS

FEATURES

  • 10 a motor designed with power to withstand any jobsite application
  • 5 in D cut capacity for rectangular stock (5 x 4-3/4 in for round)
  • Serviceable steel shroud and rubber bumpers allow guards to withstand jobsite abuse without damage
  • Led sight light allows the user to see cut line in dark jobsite environment
  • Integrated hang hook allows user to hang the saw without damaging front handle or castings
  • Variable speed dial allows user to vary speed for specific materials and various applications (100 to 350 sfm)
  • Multi-position adjustable large front handle offers the user plenty of hand space for a more accurate cut
  • Superior balance and ergonomics allows for more accurate cuts and less user fatigue
  • Blade tracking adjustment increases blade life by providing better blade tracking
  • Dual bearing blade guide rollers increase durability in the blade support system
  • Durable and adjustable material guide allows user to adjust for various jobsite materials
  • Ergonomic soft grip back handle provides comfort during use
  • Externally replaceable brushes allow for quick repairs on the jobsite
  • Blade changing lever loosens blade tension to allow for blade change
