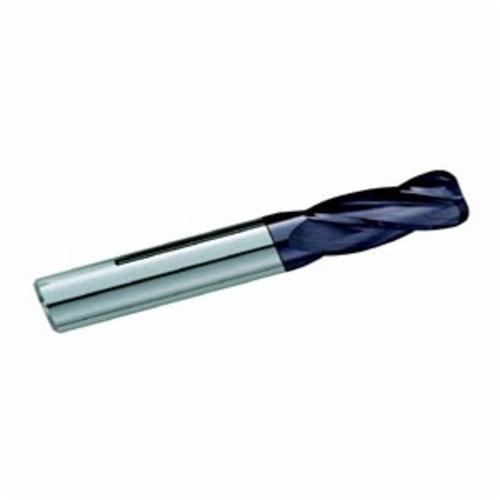

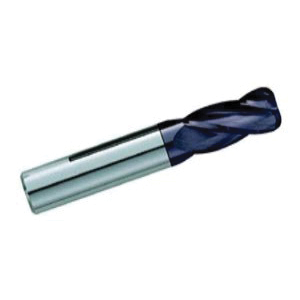

GARR 80127 230RA Center Cutting Single End Standard Length End Mill, 1/4 in Dia Cutter, 0.03 in Corner Radius, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, TiAlN Coated
- Manufacturers: Garr Tool Company
- Brand Name: GARR
- ITEM CODE: GARRT-80127
- Mfr Part: 80127
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
GARR 80127
DESCRIPTION
GARR End Mill, Center Cutting Single End Standard Length, Series: 230RA, 1/4 in Diameter Cutter, 0.03 in Corner Radius, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, 1-3/4 in Shank Length, Submicron Grain Solid Carbide, TiAlN Coated
APPLICATIONS
Dry or Semi-Dry Machining
| Cutting Direction | : | Right Hand |
| Flute Type | : | Spiral |
| Helix Angle | : | 30 deg |
| Material | : | Submicron Grain Solid Carbide |
| Series | : | 230RA |
| Shank Length | : | 1-3/4 in |
| Shank Type | : | Plain/Round |
| Type | : | Center Cutting Single End Standard Length |
| Cutter Diameter | : | 1/4 in |
| Corner Radius | : | 0.03 in |
| Length of Cut | : | 3/4 in |
| Number of Flutes | : | 4 |
| Shank Diameter | : | 1/4 in |
| Overall Length | : | 2-1/2 in |
| Finish | : | TiAlN Coated |
- Up to 40% faster than uncoated
- For stronger corners and part radius
- Extremely versatile
- Radius tolerance +/-0.001 in (+/-0.025 mm)
