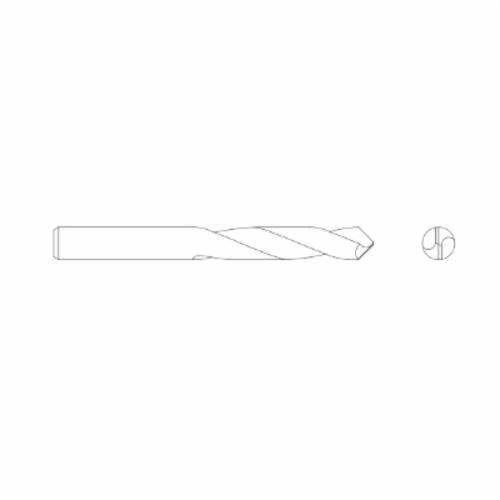

M.A. Ford® 40425000 Twister® GP/404 General Purpose Screw Machine Drill, 1/4 in Dia, 2 in OAL, Solid Carbide, Bright
- Manufacturers: M.A. Ford
- Brand Name: M.A. Ford®
- ITEM CODE: MAFOR-40413
- Mfr Part: 40425000
- UPC: 697604404138
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
M.A. Ford® 40425000
DESCRIPTION
M.A. Ford® Screw Machine Drill, General Purpose, Series: Twister® GP/404, 1/4 in Dia, 2 in Overall Length, 3XD Cutting Depth, Spiral Flute, 1 in Flute Length, Straight Shank, 90 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal Materials
APPLICATIONS
For accurate spotting on NC machines
| Applicable Materials | : | Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal Materials |
| Cutting Depth | : | 3XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Solid Carbide |
| Flute Length | : | 1 in |
| Flute Type | : | Spiral |
| Point Angle | : | 90 deg |
| Series | : | Twister® GP/404 |
| Shank Type | : | Straight |
| Type | : | General Purpose |
| Diameter | : | 1/4 in |
| Overall Length | : | 2 in |
| Material | : | Solid Carbide |
| Finish | : | Bright |
- Easy to repoint because there is no web taper
- Solid carbide construction, short lengths and no body clearance make this a very rigid tool
- Can be used at higher speeds and feeds, compatible with other carbide tooling
- Bright provides a smooth, polished finish on the tool, it increases chip flow in softer materials such as aluminum, wood and plasticcoolant fed through
- 21 deg Helix angle
