Chicago-Latrobe® 46733 550 Heavy Duty Jobber Length Drill Bit, #63 Drill - Wire, 0.037 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8 Percent, Straw Oxide
- Manufacturers: Greenfield Industries
- Brand Name: Chicago-Latrobe®
- ITEM CODE: GREIN-46733CL
- Mfr Part: 46733
- UPC: 662355467336
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Chicago-Latrobe® 46733
DESCRIPTION

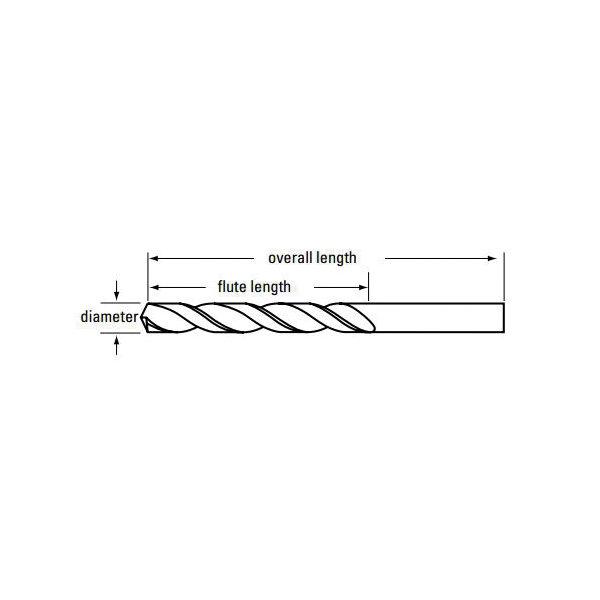

Chicago-Latrobe® Jobber Length Drill Bit, Heavy Duty, Series: 550, Imperial, #63 Drill - Wire, 0.037 in Drill - Decimal Inch, 1-1/2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 5/8 in Flute Length, 0.037 in Dia x 0.875 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8% Cutting Edge, No Through Coolant, M42 HSS-Co 8%, Straw Oxide, Applicable Materials: Alloy Steel, Stainless Steel, Titanium and Tool Steel
APPLICATIONS
For drilling in tough, high-tensile and work hardening materials under extreme operating conditions
| Applicable Materials | : | Alloy Steel, Stainless Steel, Titanium and Tool Steel |
| Cutting Depth | : | 5XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | M42 HSS-Co 8% |
| Drill Diameter Measurement System | : | Imperial |
| Flute Length | : | 5/8 in |
| Flute Type | : | Right Spiral |
| Number of Flutes | : | 2 |
| Overall Length | : | 1-1/2 in |
| Point Type | : | Split |
| Series | : | 550 |
| Shank Size | : | 0.037 in Dia x 0.875 in L |
| Shank Type | : | Straight |
| Type | : | Heavy Duty |
| Drill Size - Wire | : | #63 |
| Drill Size - Decimal Inch | : | 0.037 in |
| Point Angle | : | 135 deg |
| Material | : | M42 HSS-Co 8% |
| Finish | : | Straw Oxide |
| Through Coolant (Yes/No) | : | No |
- Heavy duty construction for drilling in tougher materials
- 135 deg P3 split point is self-centering for reduced thrust and easier penetration
- NAS 907 Type J
