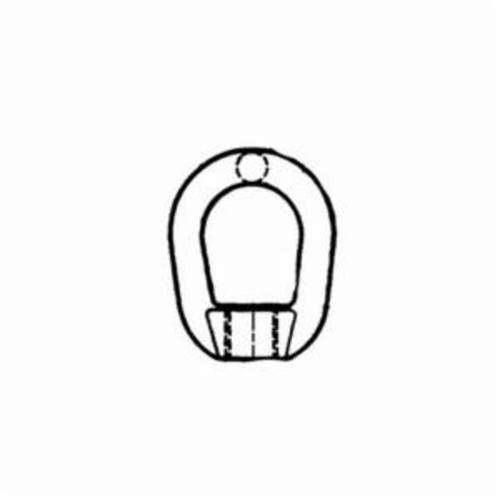

Campbell® 7100106 Eye Nut, 5/8 in, Drop Forged Carbon Steel, Galvanized, 3600 lb Working
- Manufacturers: Apex Tool Group
- Brand Name: Campbell®
- ITEM CODE: CAMPB-7100106
- Mfr Part: 7100106
- UPC: 020418100451
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Campbell® 7100106
DESCRIPTION
Campbell® can trace its beginnings back to 1834, when one of the many companies that eventually became what is today the Campbell® brand began manufacturing harnesses for horses. Over the years, countless products were added, including wire rope and chain fittings, drop forged chain hardware, high quality tackle blocks, shackles, hooks and much more.
Campbell® Eye Nut, Measurement System: Imperial, 5/8 in, Drop Forged Carbon Steel, Galvanized, Working Load: 3600 lb, 1-1/2 in Eye ID, 2-1/2 in Eye OD, 3/4 in Thread Length, 3-9/32 in Overall Height, Material Grade: 776-G/ASTM A153, UNC-2B
| Eye Inside Diameter | : | 1-1/2 in |
| Eye Outside Diameter | : | 2-1/2 in |
| Material Grade | : | 776-G/ASTM A153 |
| Overall Height | : | 3-9/32 in |
| Thread Length | : | 3/4 in |
| Thread Type | : | UNC-2B |
| Measurement System | : | Imperial |
| Diameter - Thread Size | : | 5/8 in |
| Material | : | Drop Forged Carbon Steel |
| Finish | : | Galvanized |
| Working Load | : | 3600 lb |
- Drop forged carbon steel normalized
- Galvanized to meet ASTM A-153 specifications
- 5:1 design factor
- Do not exceed the working load limit
- The standard WLL's are established for a vertical in-line pull
- Make sure eye nuts are properly seated by screwing them down completely
- Make sure the threads in the hole are clean and undamaged
- Loads must always be applied parallel to the plane of the eye and never across the plane
- Always stand clear of the load and lift the load with a steady, even pull
- #4 size
- ASTM A153
