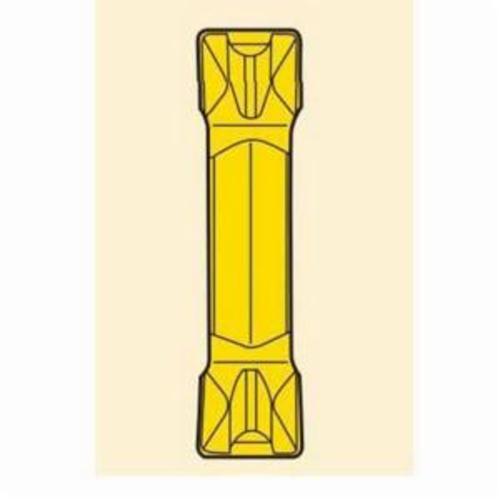

Seco 00018263 MDT Double End Turning Insert, ANSI Code: LCMF160302-A125-MT CP500, LCMF Insert, Material Grade: M, 1603 Insert, Rectangle Shape, 16 Seat, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500
- Manufacturers: Seco Tools
- Brand Name: Seco
- ITEM CODE: SECOT-18263
- Mfr Part: 00018263
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 10/PK
-
Price:
Seco 00018263
DESCRIPTION
Seco Turning Insert, Double End, Series: MDT, LCMF Insert, 1603 Insert, Rectangle Shape, 4.5 mm Thickness, 3.18 mm Width, 15.9 mm Length, 16 Seat, MT Chipbreaker, 0.2 mm Corner Radius, Manufacturer's Grade: CP500, ANSI Code: LCMF160302-A125-MT CP500, ISO Code: LCMF160302-0318-MT CP500, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, For Use On: Stainless Steel
APPLICATIONS
For medium turning and shallow grooving
| ANSI Code | : | LCMF160302-A125-MT CP500 |
| Chipbreaker | : | MT |
| Corner Radius | : | 0.2 mm |
| Finish | : | PVD-TiAlN+TiN Coated |
| ISO Code | : | LCMF160302-0318-MT CP500 |
| Length | : | 15.9 mm |
| Relief Angle | : | 7 deg |
| Series | : | MDT |
| Thickness | : | 4.5 mm |
| Type | : | Double End |
| Width | : | 3.18 mm |
| Insert Style | : | LCMF |
| Material Grade | : | M |
| Insert Size | : | 1603 |
| Shape | : | Rectangle |
| Seat Size | : | 16 |
| Cutting Direction | : | Neutral |
| For Use On | : | Stainless Steel |
| Material | : | Carbide |
