Niagara Cutter 17003412 Elite S335 Center Cutting High Performance Single End Stub Length End Mill, 5/16 in Dia Cutter, 0.02 in Corner Radius, 7/16 in Length of Cut, 3 Flutes, 5/16 in Dia Shank, 2 in OAL, AlTiN Coated
- Manufacturers: Seco Tools
- Brand Name: Niagara Cutter
- ITEM CODE: NIAGA-N61814
- Mfr Part: 17003412
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:

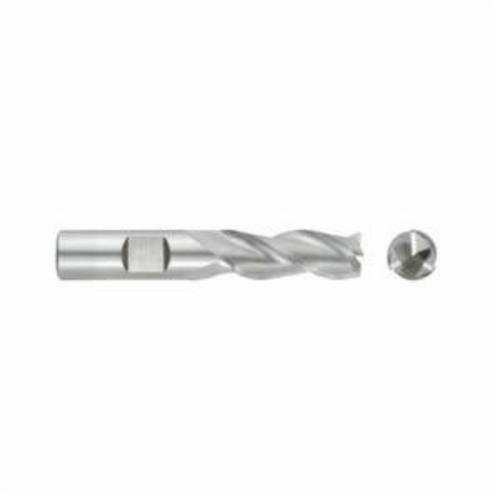

Niagara Cutter 17003412
DESCRIPTION
Niagara Cutter End Mill, Center Cutting High Performance Single End Stub Length, Series: Elite S335, 5/16 in Diameter Cutter, 0.02 in Corner Radius, 2 in Overall Length, 7/16 in Length of Cut, 3 Flutes, Spiral Flute, 5/16 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Cylindrical Shank, ANSI Code: S335-0.313-D1-R020.0-Z3, ISO Code: S335.313D1R020.0Z3, Solid Carbide, AlTiN Coated
APPLICATIONS
Slotting and Pocketing
| ANSI Code | : | S335-0.313-D1-R020.0-Z3 |
| Cutting Direction | : | Right Hand |
| Flute Type | : | Spiral |
| Helix Angle | : | 35 deg |
| ISO Code | : | S335.313D1R020.0Z3 |
| Material | : | Solid Carbide |
| Series | : | Elite S335 |
| Shank Type | : | Cylindrical |
| Type | : | Center Cutting High Performance Single End Stub Length |
| Cutter Diameter | : | 5/16 in |
| Corner Radius | : | 0.02 in |
| Length of Cut | : | 7/16 in |
| Number of Flutes | : | 3 |
| Shank Diameter | : | 5/16 in |
| Overall Length | : | 2 in |
| Finish | : | AlTiN Coated |
- Ideal for slotting in steel, stainless steel, titanium and high temperature alloys
- Large area for chip evacuation
