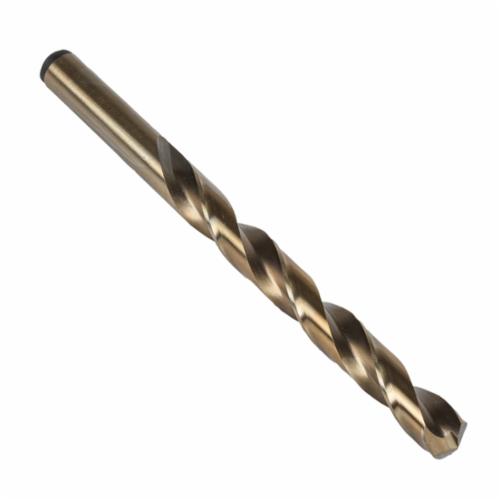

Precision Twist Drill 5997713 R18CO Heavy Duty Jobber Length Drill Bit, #21 Drill - Wire, 0.159 in Drill - Decimal Inch, 135 deg Point, HSS-E, Bronze Oxide
- Manufacturers: Dormer Pramet
- Brand Name: Precision Twist Drill
- ITEM CODE: PREDO-18321
- Mfr Part: 5997713
- UPC: 086071183217
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 12/PK
-
Price:
DESCRIPTION
Precision Twist Drill Jobber Length Drill Bit, Heavy Duty, Series: R18CO, Imperial, #21 Drill - Wire, 0.159 in Drill - Decimal Inch, 3-1/4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-1/8 in Flute Length, 0.159 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, No Through Coolant, HSS-E, Bronze Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze
APPLICATIONS
For use with hand held manual drills and either portable or stationary machines
| Applicable Materials | : | Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze |
| Cutting Depth | : | 4XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | HSS-E |
| Drill Diameter Measurement System | : | Imperial |
| Flute Length | : | 2-1/8 in |
| Flute Type | : | Spiral |
| Number of Flutes | : | 2 |
| Overall Length | : | 3-1/4 in |
| Point Type | : | Split/Self-Centering |
| Series | : | R18CO |
| Shank Size | : | 0.159 in |
| Shank Type | : | Straight |
| Type | : | Heavy Duty |
| Drill Size - Wire | : | #21 |
| Drill Size - Decimal Inch | : | 0.159 in |
| Point Angle | : | 135 deg |
| Material | : | HSS-E |
| Finish | : | Bronze Oxide |
| Through Coolant (Yes/No) | : | No |
- Low thrust design self-centering split point for easier penetration
- Cobalt base material with bronze oxide for wear resistance and lubricity
- For enhanced tool life in ferrous materials
- ANSI Specified
- NAS 907 Type J
- PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
- CSA Approved
