Seco 02956309 Turning Insert, ANSI Code: CCMT32.52-MF2 TP2501, CCMT Insert, Material Grade: P, 09T308 Insert, Diamond Shape, 09 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
- Manufacturers: Seco Tools
- Brand Name: Seco
- ITEM CODE: SECOT-14251
- Mfr Part: 02956309
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 10/PK
-
Price:
Seco 02956309
DESCRIPTION

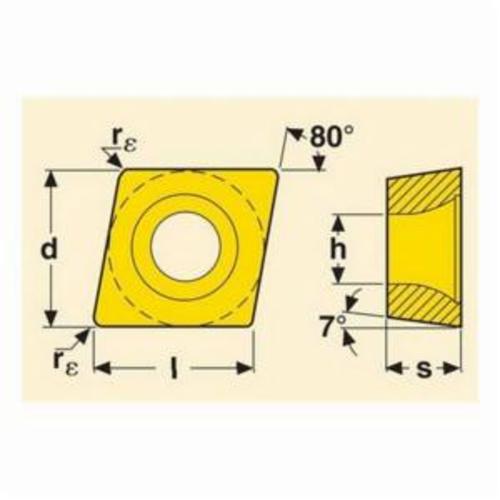

Seco Turning Insert, CCMT Insert, 09T308 Insert, Diamond Shape, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: CCMT32.52-MF2 TP2501, ISO Code: CCMT09T308-MF2 TP2501, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
APPLICATIONS
Medium and Finishing
| ANSI Code | : | CCMT32.52-MF2 TP2501 |

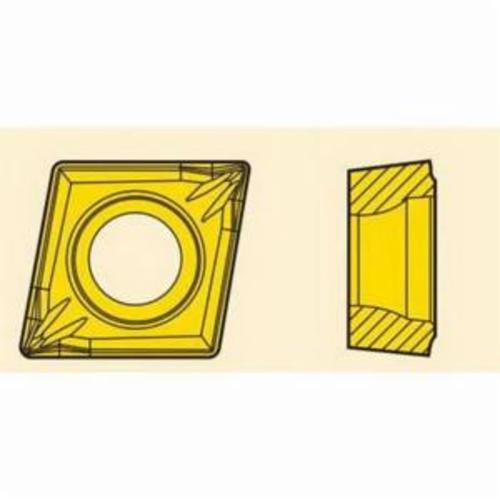

| Chipbreaker | : | MF2 |
| Corner Radius | : | 0.8 mm |
| Finish | : | CVD-TiCN+Al2O3 Coated |
| Hole Diameter | : | 4.5 mm |
| ISO Code | : | CCMT09T308-MF2 TP2501 |
| Included Angle | : | 80 deg |
| Inscribed Circle | : | 9.5 mm |
| Maximum Depth of Cut | : | 3.5 mm |
| Relief Angle | : | 7 deg |
| Thickness | : | 3.97 mm |
| Insert Style | : | CCMT |
| Material Grade | : | P |
| Insert Size | : | 09T308 |
| Shape | : | Diamond |
| Seat Size | : | 09 |
| Rake | : | Negative/Positive |
| Cutting Direction | : | Neutral |
| For Use On | : | Steel |
| Material | : | Carbide |
