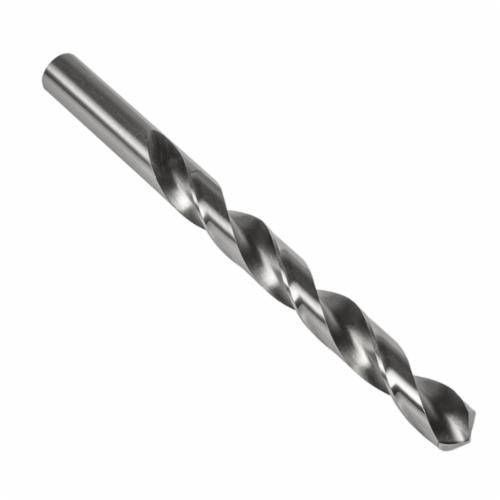

Precision Twist Drill 6000746 2A General Purpose Jobber Length Drill Bit, 3.7 mm Drill - Metric, 0.1457 in Drill - Decimal Inch, 118 deg Point, HSS, Bright
- Manufacturers: Dormer Pramet
- Brand Name: Precision Twist Drill
- ITEM CODE: PREDO-16037
- Mfr Part: 6000746
- UPC: 086071160379
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 12/PK
-
Price:
DESCRIPTION
Precision Twist Drill Jobber Length Drill Bit, General Purpose, Series: 2A, Metric/Imperial, 3.7 mm Drill - Metric, 0.1457 in Drill - Decimal Inch, 70 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 39 mm Flute Length, 3.7 mm Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Unalloyed Nickel, Copper, Brass, Bronze, High Strength Bronze, Unalloyed Aluminum Magnesium, Thermoplastics, Thermosetting Plastics, Reinforced Plastic Materials and Cermets
APPLICATIONS
For general drilling applications
| Applicable Materials | : | Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Unalloyed Nickel, Copper, Brass, Bronze, High Strength Bronze, Unalloyed Aluminum Magnesium, Thermoplastics, Thermosetting Plastics, Reinforced Plastic Materials and Cermets |
| Cutting Depth | : | 4XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | HSS |
| Drill Diameter Measurement System | : | Metric/Imperial |
| Flute Length | : | 39 mm |
| Flute Type | : | Spiral |
| Number of Flutes | : | 2 |
| Overall Length | : | 70 mm |
| Point Type | : | Conventional |
| Series | : | 2A |
| Shank Size | : | 3.7 mm |
| Shank Type | : | Straight |
| Type | : | General Purpose |
| Drill Size - Metric | : | 3.7 mm |
| Drill Size - Decimal Inch | : | 0.1457 in |
| Point Angle | : | 118 deg |
| Material | : | HSS |
| Finish | : | Bright |
| Through Coolant (Yes/No) | : | No |
- Bright finish improves chip flow in soft or non-ferrous materials
- DIN 338
