Seco 00015754 Turning Insert, ANSI Code: CCGT32.52F-AL KX, CCGT Insert, Material Grade: N, 09T308 Insert, Diamond Shape, 09 Seat, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturer's Grade: KX
- Manufacturers: Seco Tools
- Brand Name: Seco
- ITEM CODE: SECOT-15754
- Mfr Part: 00015754
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 10/PK
-
Price:
Seco 00015754
DESCRIPTION

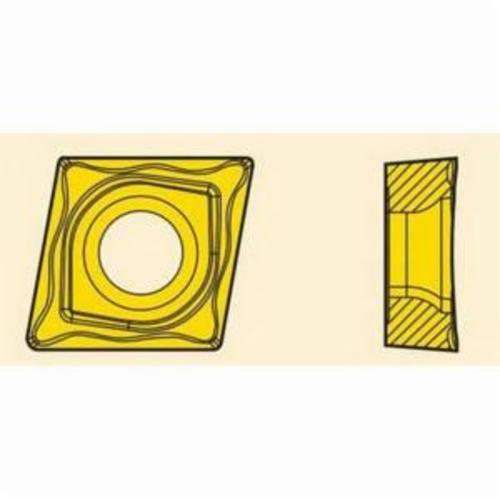

Seco Turning Insert, CCGT Insert, 09T308 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, AL Chipbreaker, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturer's Grade: KX, ANSI Code: CCGT32.52F-AL KX, ISO Code: CCGT09T308F-AL KX, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals
APPLICATIONS
For finishing, medium-rough machining and rough machining of super alloys and titanium
| ANSI Code | : | CCGT32.52F-AL KX |
| Chipbreaker | : | AL |
| Corner Radius | : | 0.8 mm |
| Finish | : | Uncoated |
| Hole Diameter | : | 4.4 mm |
| ISO Code | : | CCGT09T308F-AL KX |
| Included Angle | : | 80 deg |
| Inscribed Circle | : | 9.5 mm |
| Maximum Depth of Cut | : | 3.5 mm |
| Relief Angle | : | 7 deg |
| Thickness | : | 3.97 mm |
| Insert Style | : | CCGT |
| Material Grade | : | N |
| Insert Size | : | 09T308 |
| Shape | : | Diamond |
| Seat Size | : | 09 |
| Cutting Direction | : | Neutral |
| For Use On | : | Non-Ferrous Metals |
| Material | : | Carbide |
