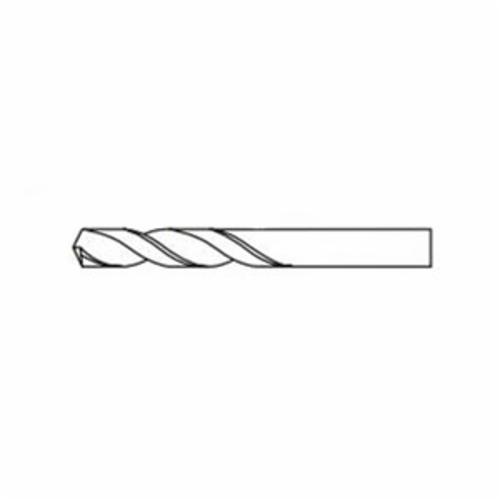

Chicago-Latrobe® 48755 157 General Purpose Screw Machine Drill, #55 Drill - Wire, 0.052 in Drill - Decimal Inch, HSS, Bright
- Manufacturers: Greenfield Industries
- Brand Name: Chicago-Latrobe®
- ITEM CODE: GREIN-48755CL
- Mfr Part: 48755
- UPC: 662355487556
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Chicago-Latrobe® 48755
DESCRIPTION
Chicago-Latrobe® Screw Machine Drill, General Purpose, Series: 157, Imperial, #55 Drill - Wire, 0.052 in Drill - Decimal Inch, 1-5/8 in Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 5/8 in Flute Length, 0.052 in Dia x 1 in L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
| Cutting Depth | : | 3XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | HSS |
| Drill Diameter Measurement System | : | Imperial |
| Flute Length | : | 5/8 in |
| Flute Type | : | Right Spiral |
| Number of Flutes | : | 2 |
| Overall Length | : | 1-5/8 in |
| Point Angle | : | 118 deg |
| Point Type | : | Radial |
| Series | : | 157 |
| Shank Size | : | 0.052 in Dia x 1 in L |
| Shank Type | : | Straight |
| Type | : | General Purpose |
| Drill Size - Wire | : | #55 |
| Drill Size - Decimal Inch | : | 0.052 in |
| Material | : | HSS |
| Finish | : | Bright |
| Applicable Materials | : | Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials |
- General purpose geometry for drilling in a wide range of operating conditions and materials
- Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
- Extra rigidity is ideal for portable drilling
