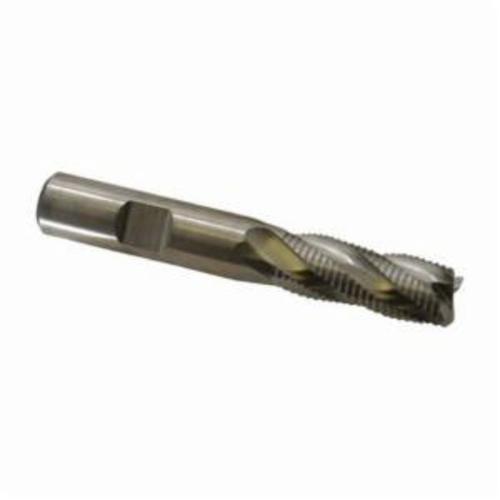

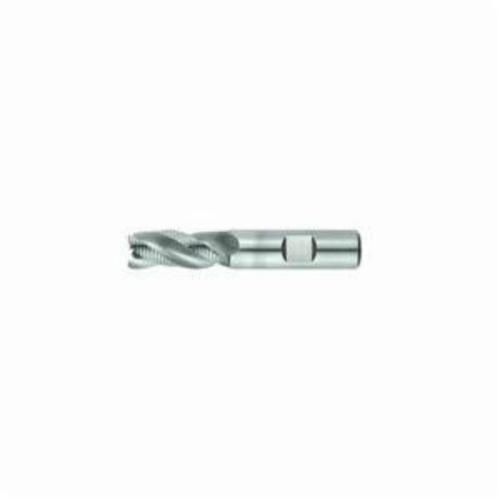

Niagara Cutter 17007771 REC448 Center Cutting Single End Stub Length End Mill, 5/8 in Dia Cutter, 0.03 in Corner Radius, 5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 2-3/4 in OAL, TiAlN Coated
- Manufacturers: Seco Tools
- Brand Name: Niagara Cutter
- ITEM CODE: NIAGA-N14568
- Mfr Part: 17007771
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
Niagara Cutter 17007771
DESCRIPTION
Niagara Cutter End Mill, Center Cutting Single End Stub Length, Series: REC448, 5/8 in Diameter Cutter, 0.03 in Corner Radius, 2-3/4 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: REC448-0.625-D1-C030.3-Z4, ISO Code: REC448.625D1C030.3Z4, M42 HSS-Co 8, TiAlN Coated
APPLICATIONS
General Purpose, Profiling and Slotting
| ANSI Code | : | REC448-0.625-D1-C030.3-Z4 |
| Cutting Direction | : | Right Hand |
| Flute Type | : | Spiral |
| Helix Angle | : | 30 deg |
| ISO Code | : | REC448.625D1C030.3Z4 |
| Material | : | M42 HSS-Co 8 |
| Series | : | REC448 |
| Shank Type | : | Weldon Flat |
| Type | : | Center Cutting Single End Stub Length |
| Cutter Diameter | : | 5/8 in |
| Corner Radius | : | 0.03 in |
| Length of Cut | : | 5/8 in |
| Number of Flutes | : | 4 |
| Shank Diameter | : | 5/8 in |
| Overall Length | : | 2-3/4 in |
| Finish | : | TiAlN Coated |
