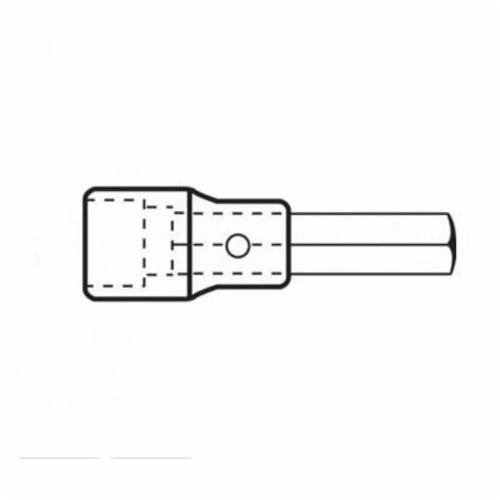

Armstrong® 12-721 Standard Length Socket Driver Bit, 1/2 in Hex Drive, 3/4 in, 2.813 in L Bit, ASME 94-186
- Manufacturers: Apex Tool Group
- Brand Name: Armstrong®
- ITEM CODE: ARMST-12-721
- Mfr Part: 12-721
- UPC: 781412127218
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Armstrong® 12-721
DESCRIPTION
Armstrong® Socket Driver Bit, Standard Length, Measurement System: Imperial, Hex Drive, 1/2 in Drive, Hex Bit, 3/4 in Bit, 2.813 in Bit Length, 1.312 in Drive End Width, 3.96 in Overall Length, Specifications Met: ASME 94-186, High Alloy Steel, Black Oxide/Polished Chrome
| Bit Type | : | Hex |
| Drive End Width | : | 1.312 in |
| Finish | : | Black Oxide/Polished Chrome |
| Material | : | High Alloy Steel |
| Overall Length | : | 3.96 in |
| Type | : | Standard Length |
| Measurement System | : | Imperial |
| Drive Type | : | Hex |
| Drive Size | : | 1/2 in |
| Bit Size | : | 3/4 in |
| Bit Length | : | 2.813 in |
| Specifications Met | : | ASME 94-186 |
- Bits are manufactured to the highest tolerances and specifications for straightness, concentricity and precise tip fit to the fastener
- Bits are manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat to prevent shattering and premature bit wear
- Bits are retained in the bit holder by a set screw that locks securely into a groove on the bit for positive bit retention as well as simple, easy bit replacement
- Broached hex in the bit holder allows higher torque loads
- EYE-D™ markings optimize size visibility
- No EYE-D ™ markings on a suffix bit sockets
- Bits press fit on a suffix bit sockets
- US Federal Specified
