Precision Twist Drill 5999667 R57 General Purpose Reduced Shank Drill, 3/4 in Drill - Fraction, 0.75 in Drill - Decimal Inch, 1/2 in Shank, HSS
- Manufacturers: Dormer Pramet
- Brand Name: Precision Twist Drill
- ITEM CODE: PREDO-91548
- Mfr Part: 5999667
- UPC: 086071915481
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
Precision Twist Drill 5999667
DESCRIPTION

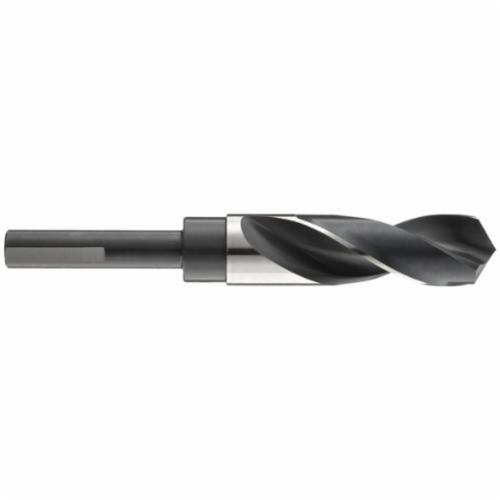

Precision Twist Drill Reduced Shank Drill, General Purpose, Series: R57, 3/4 in Drill - Fraction, 0.75 in Drill - Decimal Inch, 6 in Overall Length, 4xD Cutting Depth, Spiral Flute, 3 in Flute Length, 1/2 in Shank, 3-Flat Reduced Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened, Tempered Steel and Free Machining Stainless Steel
APPLICATIONS
For general drilling applications
| Applicable Materials | : | Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened, Tempered Steel and Free Machining Stainless Steel |
| Cutting Depth | : | 4xD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | HSS |
| Finish | : | Steam Oxide |
| Flute Length | : | 3 in |
| Flute Type | : | Spiral |
| Overall Length | : | 6 in |
| Point Angle | : | 118 deg |
| Point Type | : | Conventional |
| Series | : | R57 |
| Shank Type | : | 3-Flat Reduced |
| Type | : | General Purpose |
| Drill Size - Fraction | : | 3/4 in |
| Drill Size - Decimal Inch | : | 0.75 in |
| Shank Size | : | 1/2 in |
| Material | : | HSS |
- Half-inch round 3-flats shank, to allow larger sized drills to fit into small size chucks securely
- Combination black oxide and uncoated (bright) finish, for improved lubricity, corrosion resistance and to reduce chipping or flaking
- Jobber length drill bits, for use on a wide range of applications
- 118 deg conventional point angles, for general drilling applications
- High speed steel (HSS), for use on a wide variety of materials
- Non-coolant through
- No coolant channel
- ANSI Specified
- CSA Approved
