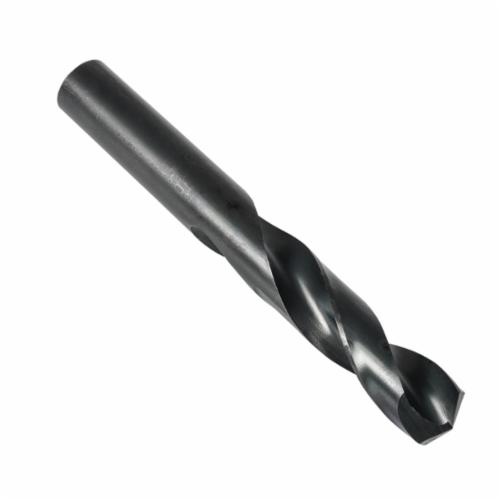

Precision Twist Drill 5999450 R40C Heavy Duty Screw Machine Drill, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, HSS, Steam Tempered
- Manufacturers: Dormer Pramet
- Brand Name: Precision Twist Drill
- ITEM CODE: PREDO-40807
- Mfr Part: 5999450
- UPC: 086071408075
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 12/PK
-
Price:
Precision Twist Drill 5999450
DESCRIPTION
Precision Twist Drill Screw Machine Drill, Heavy Duty, Series: R40C, Imperial, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, 1-13/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 13/16 in Flute Length, 7/64 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
APPLICATIONS
For machining operations in screw machines
| Color | : | Dark Gray |
| Cutting Depth | : | 2.5XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | HSS |
| Drill Diameter Measurement System | : | Imperial |
| Flute Length | : | 13/16 in |
| Flute Type | : | Spiral |
| Number of Flutes | : | 2 |
| Overall Length | : | 1-13/16 in |
| Point Angle | : | 135 deg |
| Point Type | : | Split/Self-Centering |
| Series | : | R40C |
| Shank Size | : | 7/64 in |
| Shank Type | : | Straight |
| Type | : | Heavy Duty |
| Drill Size - Fraction | : | 7/64 in |
| Drill Size - Decimal Inch | : | 0.1094 in |
| Material | : | HSS |
| Finish | : | Steam Tempered |
| Applicable Materials | : | Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials |
- Low thrust design self-centering split point for easier penetration
- Steam oxide surface treatment for increased wear resistance and lubricity
- ANSI Specified
- NAS 907 Type C
- CSA Approved
