Proto® J07520

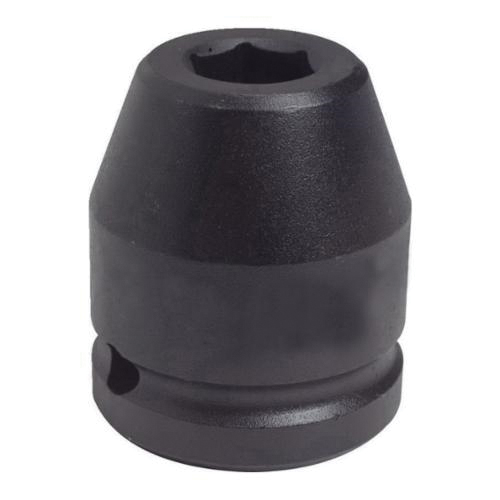

Proto® TorquePlus™ J07520 Standard Length Socket, 3/4 in Square Drive, 1-1/4 in, 6 Points

  • ITEM CODE: STAPR-J07520
  • UPC: 662679360566

  • Min. Order Qty: 1
  • Qty. Interval: 1

loading

Proto® J07520

DESCRIPTION


Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/4 in Drive, 1-1/4 in Socket, 2-3/16 in Overall Length, 3/4 in Opening Depth, 1-3/4 in Drive End Width, 2 in Socket End Width, Side Locking Hole Locking, 6 Points, 1-1/4 in Bolt Clearance Depth, High Alloy Steel, Black Oxide

APPLICATIONS

For use on stubborn or damaged fasteners and also on fasteners made from soft materials

SPECIFICATIONS

FEATURES

  • Proto® 6 point impact sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius-corners design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
  • Stamped size for easy reference
  • Specially heat treated for the correct balance of strength and durability
  • Concentric openings
  • Large clearance holes
  • Tight nut end tolerances
  • Made from high alloy steel for greater strength

CERTIFICATIONS/STANDARDS

  • ANSI B107.1
  • ASME B107.33M
  • Federal Specification GGG-W-660A
