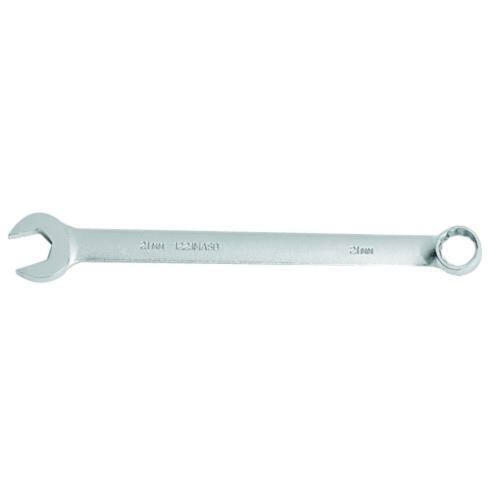

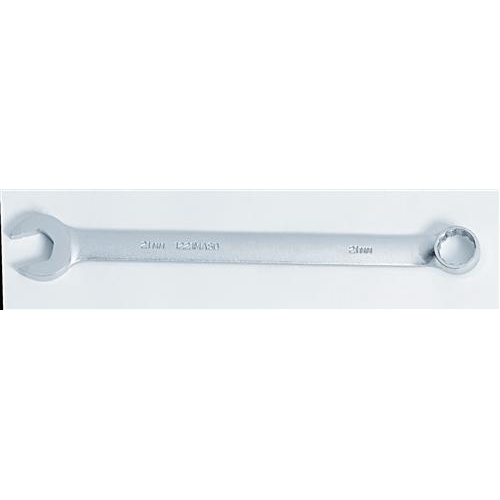

Proto® TorquePlus™ J1223MASD Anti-Slip Design Combination Wrench, Metric, 23 mm, 12 Points, 15 deg Offset, 12 in OAL, Alloy Steel, Satin, ASME B107.100, ANSI B107.9
- Manufacturers: Stanley Black & Decker
- Brand Name: Proto®
- ITEM CODE: STAPR-J1223MASD
- Mfr Part: J1223MASD
- UPC: 662679073275
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As:
-
Price:
Proto® J1223MASD
DESCRIPTION
Proto® TorquePlus™ Combination Wrench, Anti-Slip Design, Measurement System: Metric, Spline Wrench, 23 mm Wrench Opening, 12 Points, 12 in Overall Length, 15 deg Offset, 48.2 mm Open End Width, 10.3 mm Open End Thickness, 34 mm Box End Width, 13.9 mm Box End Thickness, 15 deg Head, ASME B107.100, ANSI B107.9 Specifications Met, 28.5 mm Throat Depth, Oval/Slip Resistant Grip/Straight Handle, Alloy Steel, Satin
| Box End Thickness | : | 13.9 mm |
| Box End Width | : | 34 mm |
| Handle Type | : | Oval/Slip Resistant Grip/Straight |
| Head Angle | : | 15 deg |
| Open End Thickness | : | 10.3 mm |
| Open End Width | : | 48.2 mm |
| Throat Depth | : | 28.5 mm |
| Type | : | Anti-Slip Design |
| Wrench Type | : | Spline |
| Measurement System | : | Metric |
| Wrench Opening | : | 23 mm |
| Number of Points | : | 12 |
| Offset Angle | : | 15 deg |
| Overall Length | : | 12 in |
| Material | : | Alloy Steel |
| Finish/Coating | : | Satin |
| Specifications Met | : | ASME B107.100, ANSI B107.9 |
- Satin finish provides corrosion resistance and a slip resistant grip
- 12 point box end allows for fine indexing, helping to improve speed and access
- Fits 4, 6 and 12 point fasteners
- Anti-slip design (ASD) open end
- Box ends incorporate the TorquePlus™ system
- Locking groove to help prevent slippage
- Arched surface which spreads the force over a 400% larger contact area to help prolong life
- No ribs or serrations to damage fasteners
- Allows upto 15% more torque to be applied to the fastener
- Reduces risk of fastener rounding
- Provides a better grip on worn, rounded fasteners
- ASME B107.100
