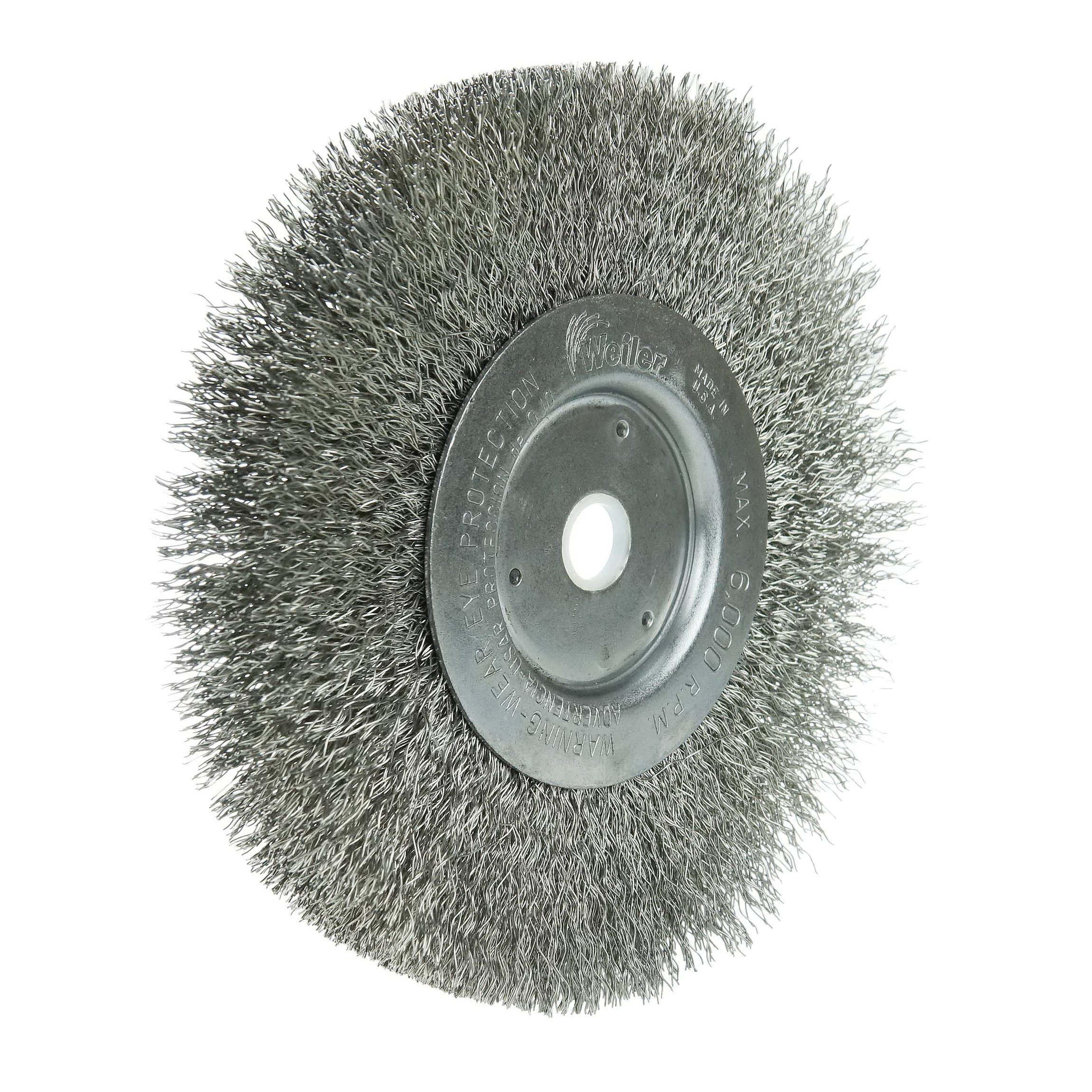

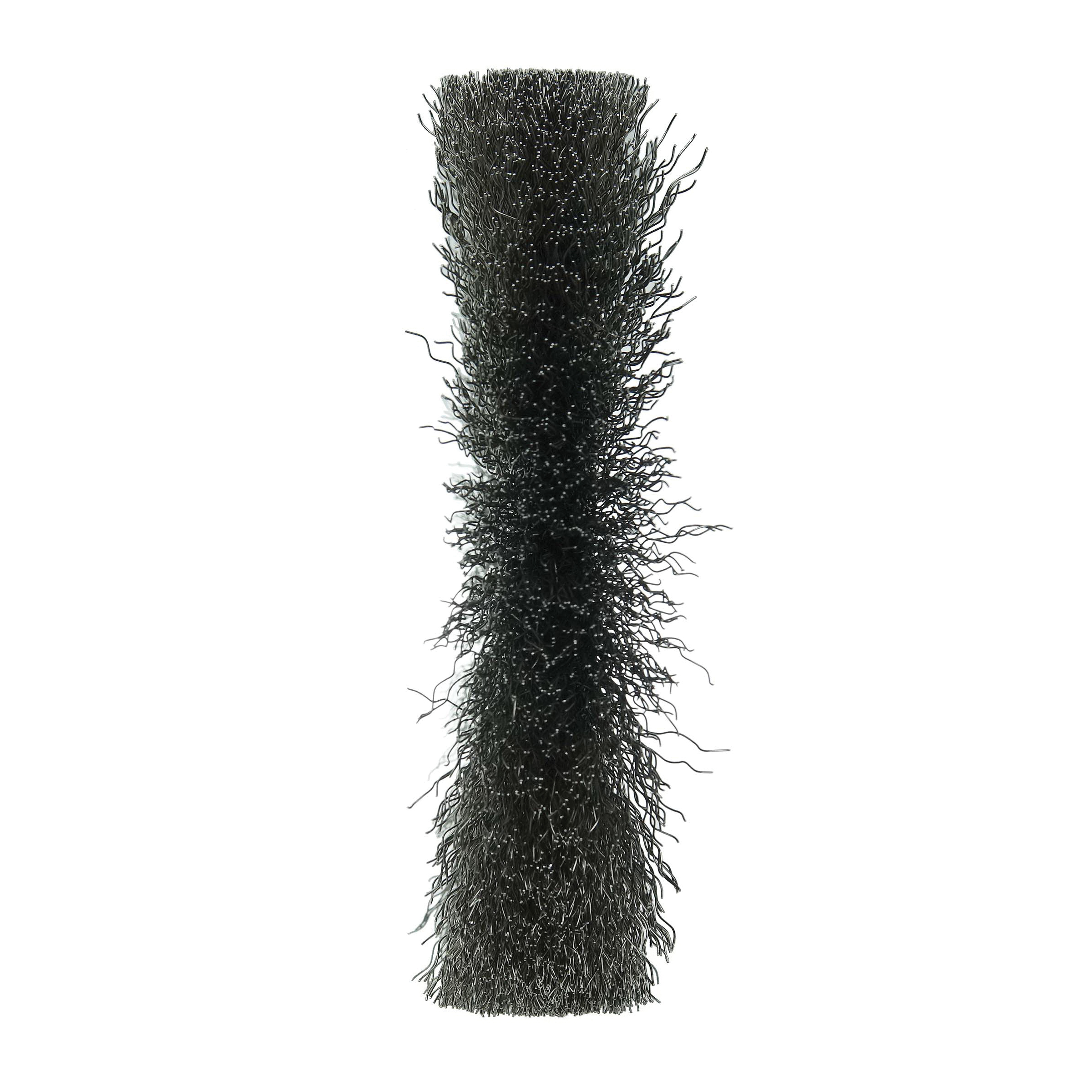

Weiler® 01705 Narrow Face Wheel Brush, 6 in Dia Brush, 3/4 in W Face, 0.0118 in Dia Filament/Wire Crimped Filament/Wire, 1/2 to 5/8 in Arbor Hole
- Manufacturers: Weiler Abrasives
- Brand Name: Weiler®
- ITEM CODE: WEILE-01705
- Mfr Part: 01705
- UPC: 123820170576
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 1/PK
-
Price:
DESCRIPTION
Weiler® 6 in narrow face crimped wire Wheel Brush provides a flexible brushing action and consistent performance for demanding light duty cleaning and deburring applications. Featuring Weiler® solid ring construction, these radial brushes are available in heat treated steel, type 302 stainless steel and brass wire for use in a wide variety of applications. 5/8 to 1/2 in arbor hole for use on bench/pedestal grinder, CNC/milling/automatic machines and straight grinders.
Weiler®, 01705, Wheel Brush, Narrow Face, 6 in Diameter Brush, 3/4 in Face Width, 1/2 to 5/8 in Arbor Hole, Crimped Filament/Wire, 0.0118 in Dia Filament/Wire, Stainless Steel Fill, 1-7/16 in Trim Length, 6000 rpm Maximum, Unthreaded Arbor Attachment
APPLICATIONS
For removing rust, light corrosion, removing heat discoloration, decorative finishing, light duty cleaning and deburring applications
| Attachment Type | : | Unthreaded Arbor |
| Fill Material | : | Stainless Steel |
| Maximum Speed | : | 6000 rpm |
| Series | : | TLN-6 |
| Trim Length | : | 1-7/16 in |
| Type | : | Narrow Face |
| Brush Diameter | : | 6 in |
| Face Width | : | 3/4 in |
| Filament/Wire Diameter | : | 0.0118 in |
| Filament/Wire Type | : | Crimped |
| Arbor Hole Size | : | 1/2 to 5/8 in |
- Intended for use on straight grinders and stationary machines such as bench or pedestal grinders and buffing lathes
- Provides a flexible brushing action and consistent performance
- 7/16 in thickness at face plate
- ANSI B165.1
