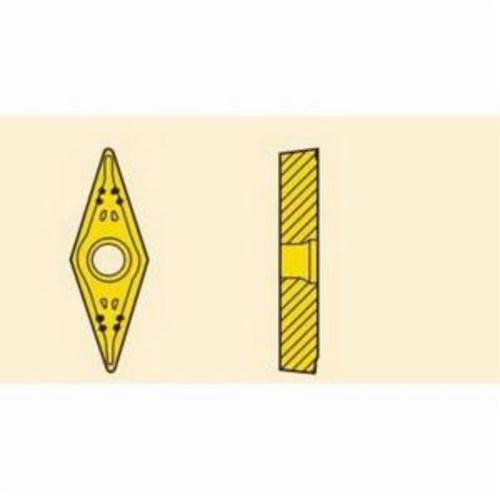

Seco 00096708 Turning Insert, ANSI Code: VBMT21.51-F1 CP500, VBMT Insert, Material Grade: M, S, 110204 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Super Alloys and Titanium, Carbide, Manufacturer's Grade: CP500
- Manufacturers: Seco Tools
- Brand Name: Seco
- ITEM CODE: SECOT-96708
- Mfr Part: 00096708
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 10/PK
-
Price:
Seco 00096708
DESCRIPTION
Seco Turning Insert, VBMT Insert, 110204 Insert, Diamond, 2.75 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Hole Dia, Manufacturer's Grade: CP500, ANSI Code: VBMT21.51-F1 CP500, ISO Code: VBMT110204-F1 CP500, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel, Super Alloys and Titanium
APPLICATIONS
Finishing Applications
| ANSI Code | : | VBMT21.51-F1 CP500 |
| Chipbreaker | : | F1 |
| Corner Radius | : | 0.4 mm |
| Finish | : | PVD-TiAlN+TiN Coated |
| Hole Diameter | : | 2.9 mm |
| ISO Code | : | VBMT110204-F1 CP500 |
| Included Angle | : | 35 deg |
| Inscribed Circle | : | 6.35 mm |
| Maximum Depth of Cut | : | 2.75 mm |
| Relief Angle | : | 5 deg |
| Thickness | : | 2.38 mm |
| Insert Style | : | VBMT |
| Material Grade | : | M, S |
| Insert Size | : | 110204 |
| Shape | : | Diamond |
| Seat Size | : | 11 |
| Rake | : | Positive |
| Cutting Direction | : | Neutral |
| For Use On | : | Stainless Steel, Super Alloys and Titanium |
| Material | : | Carbide |
