Seco 02959820 Turning Insert, ANSI Code: CNMG432-MF2 TP2501, CNMG Insert, Material Grade: P, 120408 Insert, Diamond Shape, 12 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
- Manufacturers: Seco Tools
- Brand Name: Seco
- ITEM CODE: SECOT-15061
- Mfr Part: 02959820
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 10/PK
-
Price:
Seco 02959820
DESCRIPTION

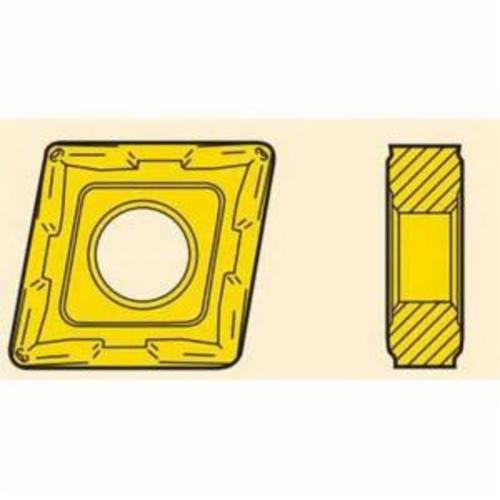

Seco Turning Insert, CNMG Insert, 120408 Insert, Diamond Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: CNMG432-MF2 TP2501, ISO Code: CNMG120408-MF2 TP2501, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
APPLICATIONS
Medium and Finishing
| ANSI Code | : | CNMG432-MF2 TP2501 |
| Chipbreaker | : | MF2 |
| Corner Radius | : | 0.8 mm |
| Finish | : | CVD-TiCN+Al2O3 Coated |
| Hole Diameter | : | 5.15 mm |
| ISO Code | : | CNMG120408-MF2 TP2501 |
| Included Angle | : | 80 deg |
| Inscribed Circle | : | 12.7 mm |
| Maximum Depth of Cut | : | 5.25 mm |
| Relief Angle | : | 0 deg |
| Thickness | : | 4.76 mm |
| Insert Style | : | CNMG |
| Material Grade | : | P |
| Insert Size | : | 120408 |
| Shape | : | Diamond |
| Seat Size | : | 12 |
| Rake | : | Negative/Positive |
| Cutting Direction | : | Neutral |
| For Use On | : | Steel |
| Material | : | Carbide |
