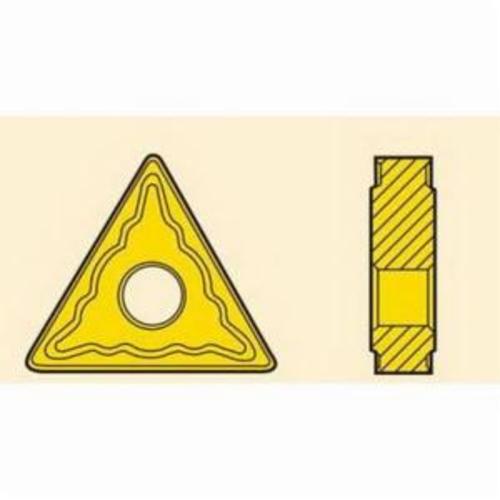

Seco 02960778 Turning Insert, ANSI Code: TNMG543-MR7 TP2501, TNMG Insert, Material Grade: P, 270612 Insert, Triangular Shape, 27 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
- Manufacturers: Seco Tools
- Brand Name: Seco
- ITEM CODE: SECOT-18684
- Mfr Part: 02960778
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 10/PK
-
Price:
Seco 02960778
DESCRIPTION
Seco Turning Insert, TNMG Insert, 270612 Insert, Triangular, 7 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 6.35 mm Thickness, 27.5 mm Length, 27 Seat, Negative Rake, MR7 Chipbreaker, 1.2 mm Corner Radius, 6.35 mm Hole Dia, Manufacturer's Grade: TP2501, ANSI Code: TNMG543-MR7 TP2501, ISO Code: TNMG270612-MR7 TP2501, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
APPLICATIONS
Medium and Roughing
| ANSI Code | : | TNMG543-MR7 TP2501 |
| Chipbreaker | : | MR7 |
| Corner Radius | : | 1.2 mm |
| Finish | : | CVD-TiCN+Al2O3 Coated |
| Hole Diameter | : | 6.35 mm |
| ISO Code | : | TNMG270612-MR7 TP2501 |
| Included Angle | : | 60 deg |
| Inscribed Circle | : | 15.88 mm |
| Length | : | 27.5 mm |
| Maximum Depth of Cut | : | 7 mm |
| Relief Angle | : | 0 deg |
| Insert Style | : | TNMG |
| Material Grade | : | P |
| Insert Size | : | 270612 |
| Shape | : | Triangular |
| Seat Size | : | 27 |
| Rake | : | Negative |
| Cutting Direction | : | Neutral |
| For Use On | : | Steel |
| Material | : | Carbide |
